GeoMeasure PinPoint Sub-Meter GNSS Receiver

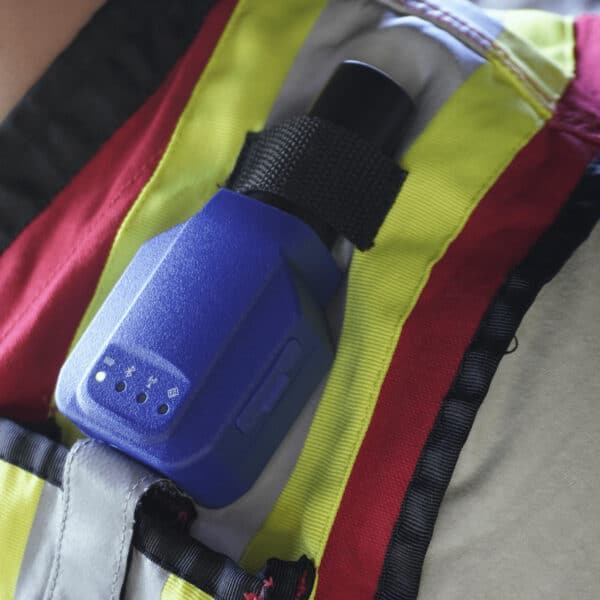

They overlap in purpose (both are compact GeoMeasure GNSS receivers with RTK capability) but land at different points on size and runtime. The PinPoint is smaller and lighter (143 g vs. 670 g) but has less than half the battery life (9+ hours vs. 20+ hours) and a lower-capacity 1,800 mAh battery versus the Nano 7’s 10,000 mAh. If you’re doing short mapping sessions and want the lightest possible unit on a pole or in a vest pocket, the PinPoint makes sense. If you’re out for full field days without a convenient recharge point, the Nano 7’s battery life is the more practical choice.

Yes, it’s an antenna, not a standalone data logger. It connects over Bluetooth to whatever’s running your field software, confirmed compatible with FieldGenius, Esri, and Uinta. Its built-in 4G (LTE FDD/TDD) is for pulling NTRIP corrections and cloud connectivity directly, not for eliminating the need for a paired controller.

Cold start (full power-up) is rated at 30 seconds or less, hot start (waking from a brief power interruption) at 15 seconds or less, and signal reacquisition after a brief obstruction is rated at under 1 second, with initialization reliability rated at 99% or higher. In practical terms, a quick pause under a tree or a momentary power blip shouldn’t cost you more than a few seconds before you’re tracking again.

Yes. Despite weighing only 143 g, the PinPoint has an IP67 rating and an operating range of -20°C to +60°C. The lightweight design is about portability, not a tradeoff on build quality, it’s rated for the same kind of temperature and ingress protection you’d expect from heavier field equipment.
