GeoMeasure G3-32x Automatic Surveyor’s Grade Level

The G3-32X Geo-Measure Automatic Level is a simple to use rugged level. Sealed against the elements you can be sure that this level will last for years to come. Fits any standard 5/8″ thread tripod. The Geo-Measure 32x automatic level features an automatic compensator making is stable against vibrations. The automatic level is tightly sealed against humidity and dust (IP67), and is quick and easy to set up and simple to sight. The level incorporates an endless horizontal motion drive with two knobs for fast and easy aiming of your survey equipment. And the two knobs make it operable with the right or left hand. The Geo-Measure 32x automatic level has a 5/8’ by 11’ thread to fit any standard tripod, making it suitable for either a flat or dom head tripod.

Additional product info

Product details

  • Automatic compensator; stable against vibrations and shock.
  • Sturdy, compact, and tightly sealed against humidity and dust (IP67)
  • Quick and easy to set up; simple to sight
  • Fast and easy aiming, operable with the right or left hand.

Package includes

  • G3-32x Auto Surveyor’s Grade Level

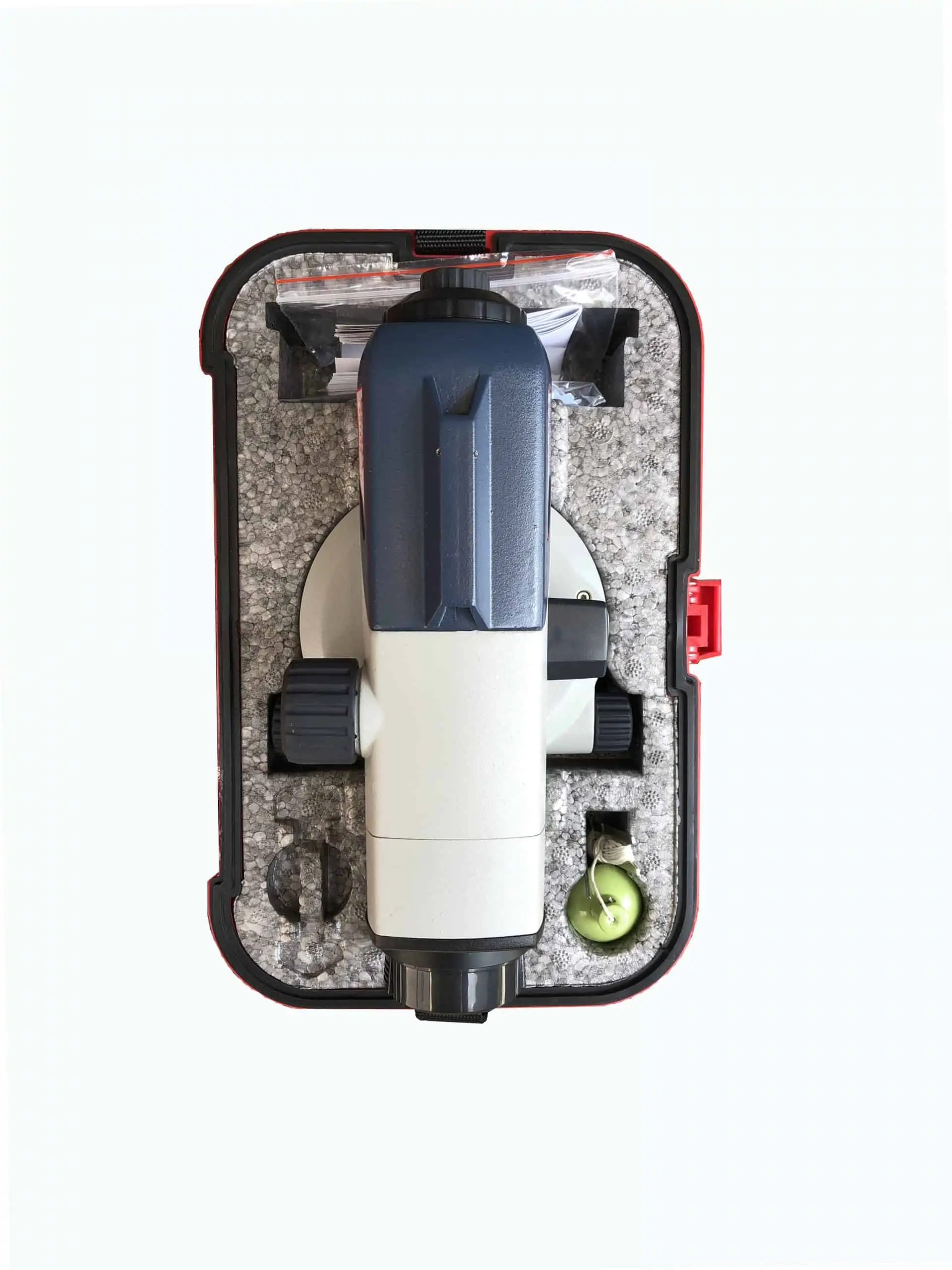

  • Carry Case
  • Heavy Duty Fiberglass Tripod
  • Rod – Foot/Inches or Metric

Description

The Geaomeasure G3-32x is the surveyors grade level that is designed to be simple to use. With two knobs sighting and adjusting the focus is easy and fast. This is made even easier by the fact that the the horizontal movement can be controlled by the right or left hand. There is no need to fumble around trying to get a free hand in order to adjust the level, you always have a choice.



With an IP67 environmental rating, this is the level that will stand up on even the busiest of work sites. The level that performs when you need it to.



The G3-32x grade level is also compatible with all 5/8″ thread screws. This is level is compatible with all of the tripods you already own. Whether you prefer a flat or a dom head tripod, the G3-32x will work for you. With the built in tribach there is no need to spend more money than you need to.



GeoMeasure Wood-Fibreglass Tripod

a robotic total station on a tripod.

Rugged and Heavy-Duty

The GeoMeasure Wood Fibreglass tripod is one of our beefiest tripods. Weighting in at just under 15 lbs, there is no need to worry about this tripod shifting on you as you work. Once set this tripod is not going anywhere.

The central pillar of the legs are made of wood, and the two supporting dowels are made of fibreglass. This means that this tripod will stand up to years of abuse on the worksite. There is no need to worry about one part of the leg cracking or breaking rendering the entire tripod useless. There are three separate parts to each leg, meaning that the tripod is still usable even one portion is damaged.

The wood-fibreglass tripod is our recommended choice for those looking for a tripod for a total station or robotic total station. The additional weight over fibreglass and aluminum tripods ensure that the tripod stays firmly rooted in place.

Survey Compatable

Each leg also features two different locking mechanisms. At the top of each leg there are quick clamps, that can be easily adjusted. Simply lift the handle and pull the leg of the tripod out. To tighten simply push the handle down, and the legs will remain in place. To ensure that once the proper position has been set that the tripod does not move, at the bottom of each leg is a screw clamp. No matter the conditions, as long as the tripod is set correctly, you won’t need to worry about your equipment shifting.

Each leg features a large step in order to help push your tripod leg into the ground better securing it. This makes it easier to set the tripod without having to push on awkward angles, or put your equipment at risk. The feet also feature a metal point that is 1 1/2″ long. There is no need to worry about the tripod slipping or shifting while you are working. This is the tripod that will keep you equipment secure.

With the triangular flat head and the 5/8″ screw, you can fit just about any equipment to this tripod. Whether you need to work with a GNSS base, a total station or a robotic total station, this tripod can work with your gear. All of our GeoMeasure GPS, Accessories, Total Stations as well as Hemisphere GNSS and CHCNAV receivers are compatible with this tripod.

For easy carrying, the tripod features a carry strap, as well as a strap to keep the legs of the tripod closed. There is no need to awkwardly shuffle around while you try to keep the tripods legs closed, or having to lug the tripod around on your shoulder. The convenient carrying strap means that you can simply throw the strap over your shoulder while keeping your arms and hands free.



As for the level rod, we have a lightweight aluminum telescoping rod to always get the shot you need to. This is the rod that is built to work, as well as last. With the large easy read measurements, there is no guess work. You simply know it works.
