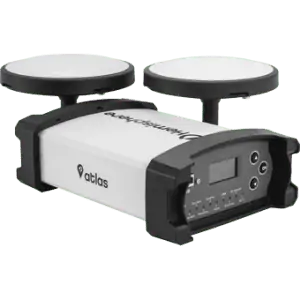

(1.0) Hemisphere Vector VS1000 GNSS Receiver



The Vector VS1000 is Hemisphere’s all new receiver designed specifically for Marine applications.

  • Multi-Frequency, Multi-GNSS
  • GPS, GLONASS, BeiDou, and Galileo, IRNSS
  • Athena RTK, Atlas L-Band, and SBAS-Capable
  • 1059 Channels
  • 10 Hz Update Rate (20 Hz Optional)
Get Your Customized Quote

Additional product info

VIEW BROCHURE

Product details

  • High-precision positioning in Athena RTK, SBAS, and Atlas L- band
  • Athena technology improves RTK performance, especially with GLONASS,
    Galileo, and BeiDou
  • Atlas L-band technology provides highly accurate corrections over the air
    (Requires the purchase of a subscription)
  • Heave of 30 cm RMS (DGNSS), 10 cm (RTK)
  • Accurate heading up to 3 minutes during GNSS outages
  • Integrated gyro and tilt sensors deliver fast startup times and provide
    heading updates during temporary loss of GNSS

Package includes

  • Vector VS1000 GNSS Receiver
  • Power Cable
  • TNC Cable
  • Antenna needs to be ordered seperately

Description

The Vector VS1000 is Hemisphere GNSS’ premiere multi-GNSS, multi-frequency receiver designed specifically for the professional marine market. Providing precise heading, Athena RTK positioning, and full Atlas capability, its rugged design is compliant to 60529:2013 IP67 and IEC 60945:2002 8.7 standards.

The VS1000 supports antenna separations up to 10 meters, offering heading accuracy to 0.01 degrees RMS in addition to RTK position accuracy and full support for Hemisphere GNSS’ Atlas worldwide L-band corrections.

  • Athena RTK and Atlas L-band capable
  • Extremely accurate heading (to 0.01° RMS)
  • Multi-frequency GPS/GLONASS/BeiDou/Galileo
  • Purpose-built for the most challenging environments
  • Supports Ethernet, CAN, Serial, USB, Bluetooth, and
    Wi-Fi
  • Powerful WebUI accessed via Wi-Fi plus a 128×64
    display and 10 multi-color LEDs
