Home » Products » (3.3) GeoMax Zoom 10 Total Station

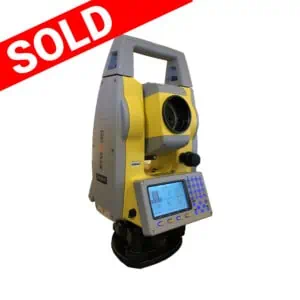

(3.3) GeoMax Zoom 10 Total Station

$ 7,950.00 CAD


Zoom10 is the most efficient, simple and affordable manual total station among all entry-level TPS, because of it’s easy to handle onboarding software. The product is the perfect fit for construction surveyors.

  • 2″ Accuracy
  • 350m Reflectorless
  • Laser Plummet
  • Bluetooth, USB & SD Ports
  • On-board Software
  • 100% Compatible with MicroSurvey FieldGenius 10.


  • Bluetooth wireless technology makes the Zoom10 accessible for real-time communication and compatible with X-PAD android solution
  • Multiple data transfer options including SD card and Micro-USB port
  • Adjustable backlight of the screen and the keyboard offers visible conditions to work in any environment
  • Dual-axis compensator for auto error elimination and accuracy compensation
  • Data storage allows to save up to 20’000 points in ASCII format
  • Easy onboard software that follows the Zoom family workflow


  • Zoom10 2″ Manual Total Station, Dual-Axis Compensator, 2 Keyboards b/w Display
  • 2 x ZBA10 Li-Ion Batteries
  • 1 x ZCH10 Charger &ZAD10 Adapter for ZBA10
  • 1 x ZDC10 USB Cable for Zoom10
  • 1 x ZTC10 Carry Case for Zoom10
  • 1 x Zoom10 Tool Set and Brush
  • 1 x ZMS10 USB Stick (USB A & USB mini)


Best performance and value ratio

The Zoom10 has been developed to meet your field work requirements.
You want to get familiar with a user-friendly and cost effective manual total station? The Zoom10 is made for you.

Bluetooth® embedded

The Zoom10 is built to operate with the full range of X-PAD due to the Bluetooth® functionality. It guides you in every step of your work to increase your productivity whether in the field or the office. It allows you to compile and process the data of every sensor on one unique platform.

Onboard software

The onboard software follows the Zoom family workflow and is very easy to operate.

No limitations
To give you maximum flexibility, the Zoom10 comes with two displays by default. This enables you to operate the onboard software from both sides.

Quick and accurate point measurement

The dual-axis Zoom10 provides a 2” accuracy and a 350mm range for reflectorless measurements.

Hexagon quality control

The GeoMax total stations are built to fulfil your needs when working in the most challenging environments. Just like all the other GeoMax products, the manual total station, Zoom10 follows the quality control of Hexagon.
