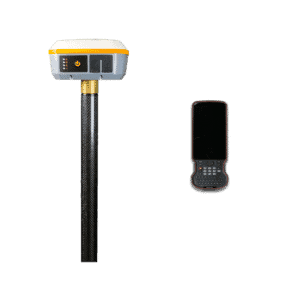

Geode GNS3S and R60 Android Data Collector GIS System


Introducing the Juniper Systems R60, the ultimate customizable mapping solution designed to meet your specific needs. When combined with Juniper’s R60 and the Geode, you unlock an unparalleled sub-meter mapping package that fulfills all your mapping requirements. The R60 is a rugged Android tablet specifically crafted for field use, built to withstand the harshest conditions you encounter. With the Geode, you can achieve reliable sub-meter positions, ensuring accurate data collection for your mapping projects. Experience the power of the R60, Geode, and customizable software for efficient and precise mapping operations.


  • Customizable
  • User-Friendly
  • Professional Mapping
  • Efficient Data Capture
  • Share Data and Reports


  • Juniper Geode
  • Charger
  • 1/4 to 5/8″ Survey Thread Adapter
  • R60 Android Data Collector
  • Pole Clamp and Claw
  • Charger


Juniper Systems

Juniper Systems has built a reputation around providing rugged and robust data collection solutions. Starting in 1993, they provided at first agricultural products to help with seed and crop management. However, they were soon approached by surveyors, foresters, and mining companies who had seen how rugged and tough their handheld devices were. This lead to the creation of some of the most popular rugged data collectors on the market including the Juniper Allegro 2 / Carlson Surveyor 2, the Archer 2, the Cedar line of Android tablets and more. All of these collectors have been proven to be able to stand up to anything that has been thrown at them.

The company is headquartered in Logan Utah, and is proud to be a North American based manufacturer. This means that if you ever need any support or service, you can deal with someone in your time zone, and who is able to turn around any repairs within one day. So whether you need a software solution like Uinta, a handheld data collector like the Mesa 3, or a sub-meter antenna like the Geode, Juniper has a solution to help manage and track your assets. With lots of experience in a variety of industries, including; agriculture, construction, mining, oil, and more, Juniper can find a custom solution that meets your needs.

At Bench-Mark, we have been a Juniper authorized distributor for over 10 years. We have supplied hand held data collectors, sofware packages and GNSS receivers to clients all over North America. We have built our relationship with Juniper on providing superioir after sales support and service to our many customers, no matter where they are located.

The Juniper Geode GNS3 Sub-Meter Antenna

The Juniper Geode is a GNSS receiver optimized for GIS and sub-meter mapping applications. It is designed to be used in difficult enviornments and is fully dust and water proof, with an MIL-STD 810G and IP68 rating. The GNS3 is third itteration of the Juniper Geode, and has taken a lot of the lessons learned from previous models to create the best one yet.

The Geode is the first 7th generation RTK reciever from Juniper. The GNS3 has the ability to receive corrections from all major constellations, and multi-frequency signals. It also has access on the upgraded GNS3M model to receive L-Band corrections from Hemisphere’s Atlas constellation.

The Geode GNS3 is designed to provide a stable, repeatable and reliable position to within a meter. Where SBAS corrections are available (which includes all of North America), accuracies better than 0.5 m can be acheived. With the ability to access Atlas corrections, accuracies up to 8 cm (95%) can be acheived on a standalone receiver.

All-In-One Design

The Geode is designed to be entirely self contained, and exceptionally easy to pick-up and use. All the features and functionality you need are either on-board the reciever, or can be augmented by the completely free Juniper Geode Connect Application.

The Geode contains an internal 6000 mAh internal Li-Ion battery that allow for up to 16 hours of use (GNS3S Model). With the universal micro USB connector it is exceptionally easy to charge the device in the field, or at the end of a long day.

The Geode can connect to a variety of different programs, either as a Juniper Geode or an NMEA device. This includes popular programs like ESRI, FieldGenius, and Juniper’s own Uinta. This means that you can work with the software you are familiar with. It is also compatible with Windows, Android and IOS devices.


Rugged Android Data Collection with the R60

The R60 Android Data collector is our most popular keyboard data collector. With a full qerty keyboard, you finally have a data collector solution to rival the much loved Surveyor 2 and Allegro 2 data collectors. This is all packed into a very compact and lightweight data collector that adds almost no weight to the pole. It is perfect for those looking for a reliable and flexible Android data collector.

The R60 is built for surveyors, and around the idea of providing as much flexibility as possible in the field. The alphanumeric keyboard makes it easy to enter point information, record field notes, send emails, program your receiver and more, even when it’s too cold to take your gloves off. With the R60 you can always get the information you need.


Long Lasting Battery

Experience uninterrupted productivity with the R60 Android Data Collector, featuring a robust 9000 mAh internal Li-Ion battery. With an impressive capacity, this powerhouse device ensures up to 30 hours of continuous working time. Whether you’re embarking on a long day of surveying or engaging in intensive data collection tasks, the R60 is fully equipped to meet your demands.

Say goodbye to frequent battery anxieties as the R60 excels in providing reliable and long-lasting performance. Its exceptional battery life empowers you to work with confidence, eliminating the need for frequent recharging or carrying around spare batteries. From dawn till dusk, this device remains your steadfast companion, enabling you to effortlessly tackle extensive workloads.

The R60’s exceptional battery life is tailored to support the rigorous demands of surveying and data collection professionals. Regardless of how intense your fieldwork may be, this cutting-edge device stands ready to deliver exceptional reliability and endurance. Rest assured that with the R60, you can stay focused on your work without any interruptions or concerns about battery life.

Powerful Processor

Elevate your data collection experience with the cutting-edge technology of the R60 Android Data Collector. Powered by an advanced 8-core Qualcomm processor and running on the latest Android 12 operating system, this device ensures seamless performance and access to a wide array of capabilities. Certified with Google Mobile Services (GMS), it grants you complete freedom to run your favorite Google apps, bringing unparalleled versatility to your fingertips.

Equipped with an abundance of processing power, the R60 effortlessly handles complex tasks, including the manipulation of surfaces and the management of large-scale projects. Even with thousands of data points, this powerhouse device rises to the challenge, ensuring swift and reliable performance without compromising precision. It is a perfect fit with MicroSurvey’s FieldGenius for Android.

Embrace the future of data collection with the R60 Android Data Collector, where the amalgamation of an 8-core Qualcomm processor, Android 12 OS, and seamless integration with industry-leading software empower you to tackle any project with confidence and efficiency.
