Home » Products » (1.61) BEST VALUE Hemisphere S321+ Base & Rover RTK GNSS Kit w/ CT8X2 & FieldGenius

(1.61) BEST VALUE Hemisphere S321+ Base & Rover RTK GNSS Kit w/ CT8X2 & FieldGenius

$ 14,995.00 CAD

Description

See What Matters to Our Customers

The S321+ base and rover multi-GNSS (GPS, GLONASS, Beidou, SBAS), triple-frequency, RTK Kit from Hemisphere GNSS paired with their CW400 Data Collector brings high performance without the shocking sticker price. The S321+ is Hemisphere GNSS newest survey product that provides the quality one can expect from a North American manufacturer, without the shocking sticker price. Equipped with a Satel 1 Watt radio, and ready for a base radio, the S321+ gives you survey flexibility. With the latest constellations: GPS L1/L2c, GLONASS, and BeiDou, the S321+ is the ultimate tool for all your survey needs. If you would like to learn more, or receive a price quote, contact Bench-Mark today.

PRODUCT DETAILS

  • Free Firmware Upgrades
  • Free Technical Support
  • Unbelievable Performance under Canopy and Near Buildings
  • Multi GNSS; GPS, GLONASS, Galileo and BeiDou
  • Atlas DGPS Support
  • Cellular Modem
  • Long Range Internal Satel Radios
  • Surveyor Tough Magnesium Housing
  • SureFix & aRTK Intelligence for RTK
  • 4GB of Internal Storage
  • Long Life Batteries
  • Only Weighs 3 lbs

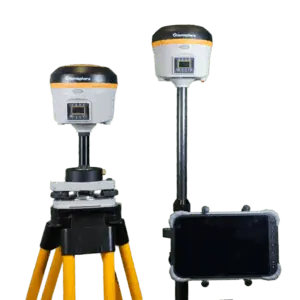

PACKAGE INCLUDES

  • S321+ GNSS Survey Receiver (Base)
  • S321+ GNSS Survey Receiver (Rover)
  • Juniper CT8X2 Tablet
  • 2.5m GPS Adjustable Rover Pole
  • Pole Mount and GPS Cradle
  • Heavy Duty Tribrach and Adapter
  • Heavy Duty 100% Fiberglass Tripod
  • Pelican Hard Cases
  • GPS Quick Releases

Description

The Hemsiphere S321+ GNSS Receiver

The Hemisphere S321+ has been Bench-Mark’s best-selling surveying receiver for the past three years. This is the best all around piece of equipment we have to offer here at Bench-Mark. This is the receiver that has all of the features of the highest end GNSS manufacturers at a price that is actually reasonable. There is no need to pilfer your coffers in order to pay for this unit. The S321+ is designed to quickly pay itself back, and is designed to last you for years to come. This is the network rover that will keep you ahead of the competition for years to come.



Multi Constellation GNSS and Triple Frequency

The S321+ is Hemisphere’s multi-GNSS, multi-frequency smart antenna. With the Hemisphere S321+ you receive corrections from; GPS, GLONASS, Galileo, BeiDou, and SBAS constellations at no extra charge. There is no need to activate the extra satellite constellations, they all come standard with the Hemisphere S321+. To add to this, the S321+ is also triple frequency. With a triple frequency receiver you have access to the most powerful GNSS signal yet L5. The L5 signal allows you to get performance otherwise impossible with traditional signals, in canopy positions. The L5 signal is powerful enough to get through tree canopies, allowing you to get shots that you would otherwise not have been able to get.



Surveyor Tough

The S321+ provides robust performance and high precision in a compact and rugged package. With a surveyor tough aluminum body, the S321+ is built to withstand whatever conditions you throw at it. The S321+ is built to survive a 2 M pole drop. This is the receiver that is built with accidents in mind, and is built to survive them. The IP67 environmental rating means that Hemisphere’s S231+ can withstand whatever conditions you face on site. This is the receiver that is built to last for years to come, and has the technology to compete that long as well.



Athena RTK Engine

The S321+ receiver is powered by Athena RTK technology. With Athena, S321+ provides state-of-the-art RTK performance when receiving corrections from a static base station or network RTK correction system. With multiple connectivity options, the S321+ allows for RTK corrections to be received over radio, cell modem, Wi-Fi, Bluetooth, or serial connection. S321+ delivers centimeter-level accuracy with virtually instantaneous initialization times and cutting-edge robustness in challenging environments.



The S321+ also boasts the impressive SureFix technology. With SureFix, you can always be assured that the solution you are seeing is the true solution. While determining a a SureFix solution, the Hemisphere S321 runs two solutions in parrellel on the board level. It is doing the equivalent of recording a fixed solution, and dumping the antenna to determine if the fixed position is consistent. You can be assured that a SureFix solution is correct 99.999 % of the time. This is the data you can rely on every time.



The S321+ receiver also enables users to work with Atlas. Atlas is Hemisphere’s industry-leading global correction service, which can be added as a subscription to the S321+. Atlas delivers world-wide centimeter-level correction data over L-band communication satellites. With Atlas, S321+ users are able to experience sub-decimeter positioning performance anywhere on earth, without the need to be near a GNSS or communication infrastructure.



Atlas L-band has the following benefits:

  • Positioning accuracy – Competitive positioning accuracies down to 2 cm
    RMS in certain applications.
  • Positioning sustainability – Advanced position quality maintenance in the
    absence of correction signals, using Hemisphere’s patented technology.

Powerful Communication

The S321+ features the ability to send and receive corrections over both cell and UHF modems. The powerful 1 W internal Satel radio is one of the best in the industry. With an optimal range of 10 km, you barely have the need for an external base radio. This is the receiver that has the radio power to get every survey done. In fact the S321+’s internal Satel radio is the best performing radio on Bench-Mark’s Range Test Baseline. Over 3.5 km with no line of site, the internal radio of the S321+ has no issues receiving corrections and calculating a fixed position. Once we step out of the truck, the receiver nearly instantly fixes. Every other receiver we have tested on this baseline, has had some range issues. This is the ultimate internal radio.



The internal 4G cell modem also allows you to send and receive corrections over cell. The S321+ is one of our favourite receivers to use on our own StormCaster internet RTK service. With StormCaster you can set up a permanent base at the office and as long as you have cell service, survey with unlimited range. With an internal cellular modem, you can run an an unlimited amount of rovers of the same base at multiple different job sites.



On top of the above mentioned communication options, the S321+ also broadcasts a Wifi signal over which setup and updates can be applied. With the Web-UI you can quickly set up static data, a base and a rover with little to no hassle. This is the receiver that has an option for any kind of way you want to work.



Key S321+ Features

  • Multi-Frequency, Multi-GNSS Base Station/Rover
  • GPS, GLONASS, BeiDou, Galileo, and QZSS
  • Athena™ RTK, Atlas® L-Band, and SBAS-Capable
  • Hot Swappable Batteries with 12 Hours of Combined Life
  • Wifi, UHF, Cellular and Bluetooth Communication
  • 8 GB of Internal Memory for Data Logging, Downloading, and Uploading
  • 572 Channels
  • 1, 2, 4, 5, or 10 Hz Update Rate (20 Hz Optional)
  • Internal Radio (410 – 470 MHz)



Juniper Rugged Data Collection

Juniper Systems has built their reputation around providing rugged, reliable and flexible data collection solutions to surveyors, miners, contractors, the construciton and forestery industries and everyone else who is in need of a tablet. Many of the most popular data collectors of the last two decades have been Juniper designs, including the Carlson Surveyor+, Allegro 2, Topcon FC-5000 and more. With a repuation for outstanding service, and products that can stand up to anything Juniper is the surveyors data collector manufacturer.

Juniper offers a host of different data collection options, and their is always an option for you. Whether you are looking for an Android or Windows data collector, Juniper has a field solution for you. From their headquarters and manufacturing facility in Logan Utah, Juniper has innovated and pushed the surveying industry ahead.

_DSC1290

The CT8X2 Android Tablet

The Juniper CT8X2 is the lightest weight Android tablet offering from Juniper. The CT8X2 is designed to be as easy to use in the field with a large easy to read screen. With the Android operating system, you can run all of your favourite Android applications, including FIeldGenius for Android and ESRI collector.

The Cedar CT8X2 has a powerful Snapdragon SDM632 8-core processor that is able to load large surfaces and files without any issues. The 4 GB of RAM is more than enough to run any of your projects.

With the CT8X2 you get a rugged anroid tablet that can meet a lot of your needs, with the flexibility to work with the equipment you want. There is a 4G internal cell modem, that allows you to connect to all major carriers, as well as WiFi and Bluetooth modules to connect to your reciever and office.

Juniper Rugged

Just like all of the other data collectors from Juniper, the CT8X2 is designed to be as functional as possible. The large screen is easy to read in the sun, but is made of the same material as your smartphone. It is tough but super receptive.

Although the CT8X2 only weighs in at 1.2 lbs, the data collector still boasts an IP67 environmental rating and a drop rating of 1 m to concrete. the CT8X2 is more than capable of withstanding anything you throw at it.

With the Android operating  system and large screen, the CT8X2 is our preferred data collector for use with MicroSurvey’s FieldGenius for Android.
