Pacific Crest ADL Vantage 35 35W Base Radio Kit

Description

The ADL Vantage 35 35W Radio kit provides larger radio range than the standard internal radios in common RTK receivers.



ADL Vantage 35 is an advanced, high speed, high power, wireless data link built to survive the rigors of GNSS/RTK surveying and precise positioning. ADL Vantage 35 35 Watts of power maximizes range, enabling you to work in difficult terrain and urban areas. It features configurable transmit power as low as 2 watts, for longer battery life, or as high as 35 watts, for a larger range. Its multi-function user interface allows radio configuration and troubleshooting in the field; change your configuration to adapt to changes in the field equipment.



The ADL Vantage 35’s heavy duty all metal construction allows for the ultimate in impact and EMI resistance, and it is environmentally sealed to IP67 standard. Its advanced 40MHz bandwidth allows for advanced data link design for high performance over the entire bandwidth. Compatible with both 12.5 and 25 kHz radios.

PRODUCT DETAILS

  • 2-35 Watts
  • 430-473 MHz frequency range
  • 1 Year Warranty

PACKAGE INCLUDES

  • ADL 35W Radio
  • GPS Base Radio Cable
  • 6′ Tripod Extension Pole
  • 4.5 m (15′) Radio Antenna Mount Cable
  • Radio Antenna Whip (unity gain)

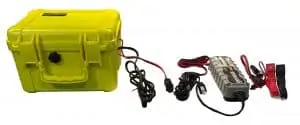

  • 12V Sealed Lead Acid Battery
  • Hard Case
  • Trailer Plug Leads x1
  • Wall Smart Charger

Description

ADL Vantage 35

The Pacific Crest ADL Vantage 35 is the most popular external radio solution we sell. With an advanced, high speed, high power, wireless data link built to survive the rigors of GNSS/RTK surveying and precise positioning, the ADL Vantage Pro is the external radio with the flexibility to get the job done. This is the external radio that has been designed for surveyors. The radio that you can rely on for years to come to provide you with the range to always be able to get the job done.



The Pacific Crest ADL Vantage 35, is also highly customisable in order to meet the exact application you need it to. In order to meet your range requirements the radio has several power settings. Using a lower power option such as 2 or 5 W will extend your range over traditional internal receiver radios all while preserving power. However, if you need to work further, or are working in a higher traffic environment, you can increase the power all of the way to 35 W. There is always a combination that will give you the best possible combination between power consumption and range in order to meet your application. The radio also boasts 16 different programmable channels. There is always an appropriate channel for where you are working, regardless of how congested the airways are. Capable of broadcasting on 430-470 MHz, this radio always has option that will work for you. There is no need to stop working when you encounter interference, simply change the channel and continue to work.



With the multi-function user interface, radio configuration and troubleshooting is done in the field; change your configuration to adapt to changes on the fly. By simply using the navigation arrows, change everything from the power setting, to the radio frequency to the message type. Every setting you would ever need to change is easily editable from the field. There is no need to bring the radio back to the office in order to change a setting, everything you need is available in the field.



The ADL Vantage 35’s heavy duty all metal construction allows for the ultimate in impact and EMI resistance, and it is environmentally sealed to IP67 standard. The radio is completely waterproof, there is no need to worry about being rained on, the radio will continue on like nothing is happening. Its advanced 40 MHz bandwidth allows for advanced data link design for high performance over the entire bandwidth. Compatible with both 12.5 and 25 kHz radios.



Key Features

  • Configurable Transmit Power: 2 W – 35 W
  • Multi-Function User Interface
  • Heavy Duty all Metal Construction – IP67 Rating
  • High Over-the-Air Link Rate
  • Advanced 40 mHz Bandwidth
  • Software-Derived Channel Bandwidth



Supporting Accessories

This is the solution you need if you are looking for that extra bit of range. The radio and 6′ antenna mast gets you that little bit extra height that extends your range just that little bit more. This is the solution that will save you money, the solution to try before investing in a base radio or a network subscription.



This isn’t the antenna tripod mast you have to worry about getting tossed around by the wind while you are working either. With the heavy duty 100% fibre glass tripod, you can trust that this tripod will not easily be knocked over, damaging your equipment. On top of this the tripod legs can each extend to a total length of 67′, this is the tripod that helps extend the height of the antenna that little bit more.



With the 6 foot extension pole on top of the tripod you can get your antenna up to 12″ in the air. That extra height between your base and antenna, is what could make all the difference between getting the range, and being out of signal. With the quick easy snap pole, you can get the pole up to the proper height, and have your base set up in no time, saving you time and money.



With a larger steel whip that is pointed upward, you can get that extra bit of range that will make the difference between losing and receiving a fixed solution. The larger antenna also provides a more stable base that will not get tossed around by the wind.
