This battery is compatible with the Hemisphere S631 / Carlson BRx7 RTK receivers and the P9 / Hemisphere CW400 data collectors. The battery has a smart indicator to make it easy to see how much charge you have left. These batteries will power the BRx7 and S631 for up to 12 hours of continuous usage.
Product details
Package includes
BP-5S Battery

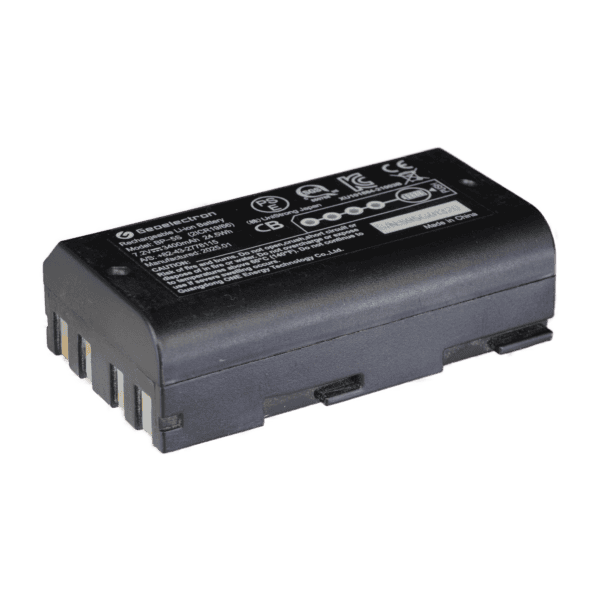

The BP-5S battery is fully compatable with a number of GNSS receivers the Hemisphere S631, Carlson BRx7, the Stonex S900a and S900. The battery is also compatable with the Hemisphere CW400, P9 and P9II data collectors. The BP-5S is designed for survey applications and will stand up to the punishment and long working days you will need it for. With the inter-compatability between data collector and recievers, you can ensure that you always have enough batteries to get through the day. Plus with small compact size, you can easily carry a handful of these batteries in your pockets without much hassle.
The BP-5S easily slots into the receiver and data collector, with locking channels to keep it in place, even if the battery door is not secured. This ensures you never misplace a battery in the field. The smart indicator on the button allows for you to check the charge of the batteries on the fly, to know exactly how much you have left to work with.
With the BP-5S you have a battery you can take into the cold or heat and not have to worry about large performance drop offs. They will be able to power your receivers whether it is -30°C or 30°C. Made from Li-Ion there is no need to worry about charge cycles and power loss when not in use. Just make sure they are charged, and they will be ready to go.
Specifications
Yes. The BP-5S is designed for both the Hemisphere S631 and Carlson BRx7, and it is also used in compatible equipment such as the Hemisphere CW400 and P9 data collectors. This makes it useful as a replacement or spare battery across compatible survey equipment.
The S631 and BRx7 use two BP-5S batteries in their dual-battery configuration. The BRx7 documentation specifically lists two BP-5S batteries in the receiver kit, while the S631 specification also defines its 12-hour rover runtime using two batteries.
The BP-5S is rated at 3,400 mAh, 7.2 V, and 24.5 Wh per battery. The S631 is specified for up to 12 hours of rover UHF operation with two batteries, although actual runtime varies with the operating mode and field conditions.
Yes. The BP-5S uses a dual-battery setup that allows the receiver to remain powered while one battery is replaced, making it possible to extend field operation without stopping the survey workflow. This is particularly useful during long jobs where maintaining the active receiver session is important.

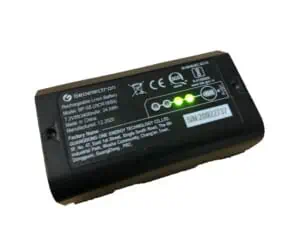

The BP-5S has a built-in smart charge indicator with four levels that lets you check the battery’s approximate charge before use. This makes it easier to identify a charged spare and plan battery changes during a field session.
Yes. In addition to the S631 and BRx7, the BP-5S is compatible with the Hemisphere CW400 and P9 data collectors, as well as certain other supported survey equipment. Using the same battery type across compatible receivers and controllers can simplify spare-battery management for crews using multiple devices.
For full-day surveying, carrying additional batteries can be useful because the S631 and BRx7 rely on two batteries for their longest specified runtime. Battery condition also matters, so replacement batteries should be stored and charged appropriately rather than treated as an unlimited source of runtime.
The product information specifies operation from -30°C to 30°C, making the battery suitable for a wide range of outdoor surveying conditions. Actual battery runtime can still vary with temperature, so colder conditions should be considered when planning battery capacity for extended field sessions.
