Hemisphere S631 Base and Rover RTK GNSS w/ Hemisphere CW400 and FieldGenius

Description

The Hemisphere S631 is the latest receiver from Hemisphere GNSS. The S631 carries the latest Phantom P40 board that is designed to take advantage of all the available constellations and signals. This is the best performing receiver in multi-path environments on the market. When paired with the 60° tilt sensor this is the receiver that you can take anywhere to survey anything.

PRODUCT DETAILS

  • Triple Frequency Multi Constellation Receiver
  • Internal 1 Watt Satel Radio – 10 km Range
  • LTE Internal Cell Modem
  • 9 Hour Hot Swappable Batteries
  • 1.3 kg with Batteries

PACKAGE INCLUDES

  • Hemisphere S631 GNSS Base Receiver
  • Hemisphere S631 GNSS Rover Receiver
  • UHF Antennas
  • 4x Batteries
  • P9 Windows Mobile Data Collector
  • MicroSurvey’s FieldGenius 10
  • Tripod
  • Adjustable 2m Pole

Description

Hemisphere GNSS

Hemisphere was founded in 2002, and has provided industry leading GNSS positioning solutions. First breaking into the agriculutre positioning market, Hemisphere has become a main stay of the agriculture industry under the brand name OutBack. Branching out from agriculture, Hemisphere has provided leading positioning technology in the form of their Vector marine products, and their industry best S-Series of surveying equipment.

Hemisphere is known for their high-performance, high-precision and reliable GNSS products that take full advantage of the latest signals and constellations. Hemisphere’s products are designed to provide accurate and reliable positions even in difficult multi-path and high interfence environments. Hemisphere receivers are industry leader’s in multi-path positioning and can out-perform or match any reciever on the market.

Hemisphere GNSS is head-quatered in Scottsdale Arizona, and has several offices across North America, including in Calgary Alberta and Winnipeg Manitoba. What this means for you is, that all support and service is provided in your time zone. There is no need to ship anything overseas, meaning quick turn-arounds on any repairs. Here at Bench-Mark we have been Hemisphere wholesale distributors for over 10 years. We have watched Hemisphere improve their survey offerings from the dual-frequency S320 all the way to the multi-GNSS and multi-frequency S631 reciever.

The Hemisphere S631

The Hemisphere S631 is the latest survey receiver from Hemisphere, and boasts all of the latest RTK technology they have to offer. It is a multi-frequency, multi-GNSS reciever that is the best performing receiver to date.

The Hemisphere S631 can receive corrections from all of the major constellations including; Galileo, BeiDou, GPS and Glonass. With the ability to fix off any constellation the S631 can take the best available corrections to determine its position.

GPS: L1CA/L1P/L1C/L2P/L2C/L5

GLONASS: G1/G2/G3, P1/P2

BeiDou: B1i/B2i/B3i/B1OC/B2A/B2B/ACEBOC

Galileo: E1BC/E5a/E5b/E6BC/ATLBOC

IRNSS: L5

QZSS: L1CA/L2C/L5/L1C/LEX

SBAS and Atlas

Superior Multi-Path Performance

The Hemisphere S631 provides best in class under canopy performance. The S631 uses Hemisphere’s proprietary Athena RTK engine. The Athena RTK engine is designed to utilize all of the signals that are available today. With access to the higher power, and multi-path mitigating L5 signals on all available constellations, the S631 can perform under dense canopy.

Under Canopy Repeatability

The S631 is not just faster to fix under canopy. They are also accurate, repeatable and reliable. With the Athena RTK engine, you have an engine that filters and disregards solutions that have been affected by multi-path.

With Sure-Fix technology, the S631 uses two independant and distinct RTK engines to derive a solution. Only once the two agree will the solution be reported as Fixed+. With SureFix you can be confident in your position, and avoid having to reshoot a position multiple times.

The 7th Generation technology inside of the Hemisphere S631 is the most advanced positioning technology on the market.

Advanced IMU tilt Sensor

One of the biggest advantages of the Hemisphere S631 over the last generation of recievers is the introduction of the Inertial Measurement Unit (IMU). The IMU inside of the S631 integrates RTK data with the inertial sensor to get an accurate position. By integrating RTK data into the IMU sensor, you do not have to worry about orientation or calibration.

The IMU tilt sensor can be calibrated in as little as 30 seconds, with a very simple rocking motion. All you have to do is hold the point of the pole on the ground and rock it back and forth to calibrate the sensor. The quick procedure takes no time in the field and you are ready to start surveying right away.

Extended Range, Battery and Durabilty

The S631 boasts powerful internal 1 W Satel radios, that can provide up to 10 km of base to rover range. The internal Satel radio is capable of broadcasting many of the most common and popular radio formats, including; TrimTalk, Pacific Crest, TrimMark and Satel. With the ability to program and edit your frequencies, message types, protocols, and more you can always find radio settings that will work with your existing equipment. When you need a little bit more range, the S631 can broadcast corrections over a cellular network with the use of StormCaster.

The S631 is encased in a magnesium housing that provides dust, shock and water proofing. WIth an IP67 environmental rating, and a MIL-STD-810G rating, you can be assured that the Hemisphere S631 will stand up to whatever you throw at it on site. Whether it falls from your truck, pole or your tripod is blown over the S631 can take any impact you throw at it.

The S631 supports all of this processing and radio power with long lasting battery. There are two batteries that can be hot swapped in the reciever, that allows for up to 12 hours of continuous range. The batteries both have smart battery indicators to indicate how much charge remains in the battery.

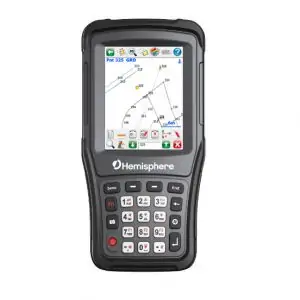

Hemisphere CW400

The IronView CW400 is Hemisphere GNSS’ next- generation professional grade GNSS data collector. The rugged handheld includes a high-sensitivity GNSS antenna and performs well in challenging environments, such as forests and urban areas.



The CW400 is compatible with high-capacity MicroSD cards, ensuring there is enough storage space for large data and faster background maps. Integrated Bluetooth and wireless LAN capabilities enable the CW400 to connect to networks and other devices freely.



The CW400 is the perfect fit for field work. The rugged hand-held is designed with a 3.7” industrial high contrast, sunlight-readable touchscreen display. The CW400 meets IP65 standard, making it both dust and water resistant. Two batteries provide up to 14 hours of use allowing GNSS data collection for a full working day without the need to recharge.

  • IP65 Certified
  •  Sunlight readable display
  •  Full communication set
  •  Built-in GNSS receiver



MicroSurvey Software

MicroSurvey software has built a reputation on providing software packages for the geomatics, survey, civil and forensic industries. They have built a reputation upon providing a robust and reliable software solutions backed by great support. Whether you are looking for a field software package, an office CAD drafting package or an post proccessing quality assurance package, MicroSurvey has a solution for you.

MicroSurvey software is based out of Kelowna BC and has been a proud Canadian company since 1985. They pride themselves in providing a robust field to finish solution that has the tools an expert needs, but is easy enough to use that anyone can start working right away. As they are based in Kelowna, their support is in a North American time zone. This means that if you run into something in the field, you can give them a call and get talking to a live person who is there to help you out. As they like to say, they empower people, not machines.

FieldGenius - Field Data Collection

FieldGenius is designed to make data collection, categorization and staking as easy as possible. FieldGenius has over 20 years of development, and a lot of time to refine and ensure that all the tools you need are in the software.

FieldGenius has modules to work with GNSS, total stations, robots and roads. And unlike a lot of the industry, the standard FieldGenius version has drivers to work with GNSS and total station instruments. This means you do not need to purchase seperate modules to work with your existing equipment.

FieldGenius is the last of the truly independant brand neutral survey software companies. Unlike all of the other software designers, FieldGenius does not sell hardware. They have no incentive to lock manufacturers out of their software. Many of the top brands are available to use with FieldGenius, including; Hemisphere, Topcon, Sokkia, Leica, and more.

Industry Best Support

Here at Bench-Mark we have designed our support services to make learning FieldGenius as easy as possible. This includes our live tech support, live training, cheat sheets, and video guides. We want you to have all the information you need to make sure the software does everything you need it to.

Our live training session occur several times a week and are live on Zoom. In these sessions, we go over how to set the gear up, how to create a new project, stake a point, and more. As there are often only 1-2 people in a session, you can ask questions to help tailor FieldGenius to your exact needs.

Our comprehensive cheat sheet and video guides cover the most basic topics from changing your coordinate system to the most advanced functions in FieldGenius like calculating volumes. Each guide is curated so that you can easily find what you are looking for.
