Hemisphere HA32 UAV GNSS Antenna

Description

The Hemisphere HA32 multi-GNSS antenna is the high performance multi-GNSS, multi-frequency UAV antenna. This is the antenna designed to be small and compact, all while providing you a precise position.

PRODUCT DETAILS

  • Multi-Frequency GNSS
  • 0.9 lbs
  • SMA Connector for RF Communications

PACKAGE INCLUDES

Description

Overview

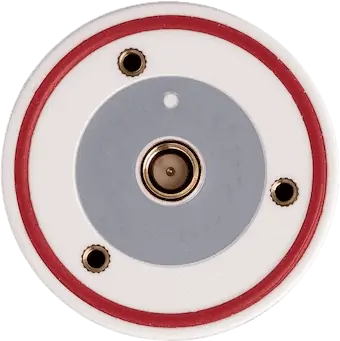

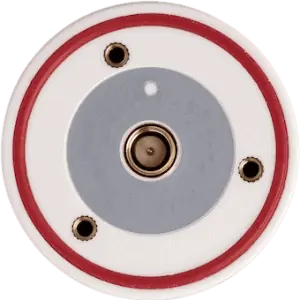

The Hemisphere HA32 is purpose built for UAV applications. Small and compact, this is the antenna that you can attach your UAV without having to worry about stability and payload. Built around Hemisphere’s proprietary 4-helix technology, the HA32 is designed to mitigate jamming and provide superior filtering performance. For easy installation and and secure mounting, the HA32 has three mounting screws and an o-ring to provide an IP67 rated enclosure.



GNSS Sensor

  • Multi-Constellation Support
    • GPS L1/L2
    • BeiDou B1/B2
    • GLONASS G1/G2
    • Galileo E1/E5b
    • QZSS L1/L2
    • SBAS
    • Atlas L-Band
  • GNSS Frequency: 1200 – 1250 MHz, 1539 – 1609 MHz
  • Polarization: Right Hand Circular
  • Passive Peak Gain: 3 dBn, typical
  • LNA Gain: 30 dBn, typical
  • LNA Noise: 2.0 dBn, typical
  • Out-of-Band Rejection: >50 dBc @ f0 +/- 200 MHz



Power

  • Input Voltage: 3.3 to 6 VDC
  • Input Current: 25 mA, typical



Physical

  • Dimensions: 7.5 H x 4.1 D (cm)
  • 0.9 lbs
  • 0.45 mm Mound
  • RF Connector: SMA Plug Connector
