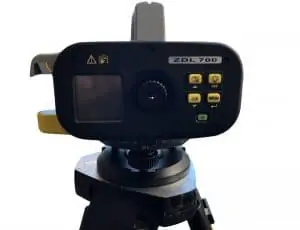

Lightweight and built for ease, the Geo-Measure ZDL700 is the surveyors digital level. With an optical 24x zoom, and the ability to internally to store up to 2000 individual points, this is a great solution for you. The ZDL700 is the level that is simple and easy to use. This is not the level that requires you to take days to train on, this is the one that you are already familiar with. The ZDL700 is the digital level that will save you time and money. There is no need for a separate data collector or field book, all of the points are stored on board the unit. Simply use the included download cable to sync with a computer or laptop.
Product details

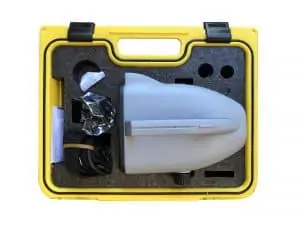

Package includes
The GeoMax ZDL700 digital level has 24x magnification and a measurement speed of less than 3 second, and features a one-push measure and store functionality providing a faster, more economical work-flow for surveyors. Digital reading combined with internal memory makes miss reading and operator interpretation errors a thing of the past. The onboard adjustment program, height difference calculation, inverse staff measuring mode, in combination with various measuring configurations, enables you to execute all calculations with the ZDL700.
The GeoMax ZDL700 level can store up to 2,000 points, and has the ability to switch between manual and automatic point numbering which increases not only your flexibility but also allows you to document your work on the fly. It is accurate to 0.7 mm for 1 km making the ZDL700 an ideal level not only for high order levelling but also for deformation measurements and precise surveying. It has excellent low high performance (minimum 20 Lux) and is sealed against humidity and dust (IP55). And GeoMax’s patented shock-resistant pendulum magnetic damped compensator ensures durability and precision. The ZDL700’s 2300 mAH battery offers 16 hours of continuous use and it weighs less than 2.5 kg including batteries.
At GeoMax we understand that you require accurate results and demand ease of use in combination with fast operation. That’s why we’ve introduced the ZDL700 digital level for the surveying and construction worlds. Now you can go digital with all your levelling tasks with a product that delivers outstanding price-performance and “Works when you do!”
Quick, easy and error-free
The super fast measurement speed of less than 3 seconds in combination with the simplicity of the one-push measure and store functionality provides a faster, more economical workflow. Digital reading combined with internal memory make miss-readings and operator interpretation errors a thing of the past.
Accurate results
Extensive field tests verify the excellent accuracy of the ZDL700 of 0.7 mm for 1 km double-run level. This makes the ZDL700 an ideal level not only for high order levelling but also deformation measurements and precise surveying, as well as general construction.
The super fast measurement speed of less than 3 seconds in combination with the simplicity of the one-push measure and store functionality provides a faster, more economical workflow. Digital reading combined with internal memory make miss-readings and operator interpretation errors a thing of the past.
Large internal memory
To further enhance your levelling, memory for up to 2,000 points is integrated in the ZDL700. Features like the ability to switch between manual and automatic point numbering increase not only your flexibility but also allow you to document your work on the fly.
Seamless Dataflow
The data recorded on the job site can be simply downloaded by connecting the ZDL700 with a PC or laptop. Seamless dataflow from field to finish is guaranteed. In addition, external data collectors or PDAs provide you with an additional degree of flexibility for downloading or processing your measurements online.
Canada’s #1 supplier of land surveying equipment and instruments.
