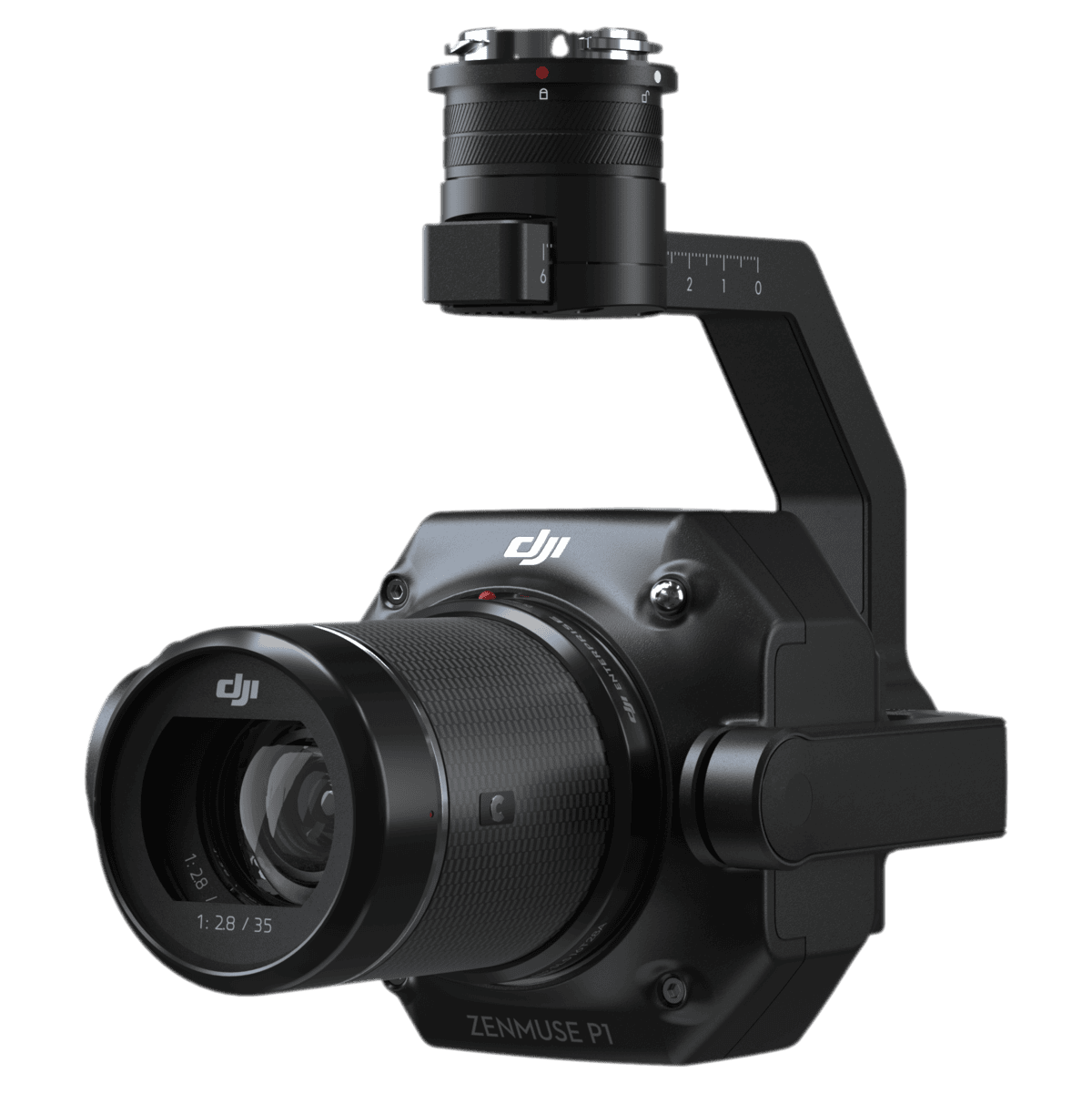

DJI Zenmuse P1 Oblique Camera

Description

Meet the Zenmuse P1: a purpose-built photogrammetry payload that turns your Matrice into a high-throughput mapping rig. A 45 MP full-frame sensor and central leaf mechanical shutter lock in crisp, distortion-free imagery at up to one photo every 0.7 seconds, so you can keep groundspeed up without smearing your orthos. TimeSync 2.0 aligns the camera, RTK, gimbal, and flight controller down to microseconds, delivering survey-grade accuracy—often without GCPs.

Swap DJI DL-mount lenses (24/35/50 mm) to match your GSD and altitude, then let Smart Oblique Capture automate façades and rooflines for dense urban blocks and reality capture. With mission-aware file naming, complete metadata (intrinsics/extrinsics, RTK status), and clean handoff to DJI Terra and your preferred workflow, the P1 helps crews finish flights faster and move straight into deliverables.

Key features

• Full-frame horsepower: 45 MP sensor, 4.4 μm pixels, low-noise/high-sensitivity imaging for long survey days

• Mechanical global shutter: central leaf shutter up to 1/2000 s for crisp edges and true scale

• Synchronized accuracy: TimeSync 2.0 microsecond-level alignment of camera/RTK/gimbal/FC

• High throughput: capture every 0.7 s; map up to ~3 km² in a single flight at 3 cm GSD (typical overlaps)

• Lens flexibility: DL-mount 24/35/50 mm primes to hit target GSDs and reduce flight time

• Smarter obliques: Smart Oblique Capture reduces redundant frames and speeds post by ~20–50% (site dependent)

• Clean data handoff: organized mission folders, embedded camera/RTK metadata, and MRK timestamps for processing
