GeoMeasure GM52 2″ Package

Experience unparalleled precision and durability with Reflectorless Total Stations, purpose-built to enhance construction surveying. Featuring a swift and accurate Electronic Distance Measurement (EDM) system, these instruments cater to the time-sensitive demands of construction projects. The optional Bluetooth® connectivity streamlines communication between total stations and data controllers, eliminating cable clutter and enhancing mobility on construction sites. Advanced angle accuracy ensures precise measurements crucial for successful construction endeavors, while the rugged, waterproof design with an IP66 rating provides durability in diverse environmental conditions.

The GeoMeasure GM-50 Series, designed specifically for construction excellence, offers a class-leading EDM unit for accurate measurements up to 3,000 m. In reflectorless mode, it excels with measurements up to 500 m, ideal for areas with limited reflective surfaces. The series is not only versatile but also cost-efficient, featuring a smaller, lighter design with increased storage capacity. Integrated Bluetooth® capability and rigorous testing for dust-proofing, water-proofing, and environmental resilience ensure these total stations withstand the challenges of construction sites. Elevate your construction surveying efficiency with the GM-50 Series, where precision and durability converge seamlessly.

Get Your Customized Quote
GeoMeasure GM52 2" Package

Additional product info

VIEW BROCHURE

Detailed quote form

Request A Free Quote – GM52 Total Station

"*" indicates required fields

Total Station Options

Select Total Station

Data Collection Options

Select Data Collection

Desktop Software

Select Desktop Software

Accessories

Select Accessories
Name*
Call In?
Receive text messages from us?

By submitting this form, you hereby agree to receive communications from Bench Mark

By providing a telephone number and submitting this form you are consenting to be contacted by SMS text message. Message & data rates may apply. You can reply STOP to opt-out of further messaging, and get more help by sending HELP. Check our Privacy Policy for more information.


Product details

  • 500m Reflectorless
  • User Friendly Onboard Software
  • 2″ Angular Accuracy
  • Dual Axis Compensator
  • 1.5mm + 2ppm Accuracy with Reflector
  • 2mm + 2ppm Accuracy Reflectorless
  • Wireless Bluetooth Communication
  • Laser Plummet
  • 30X Magnification Telescope

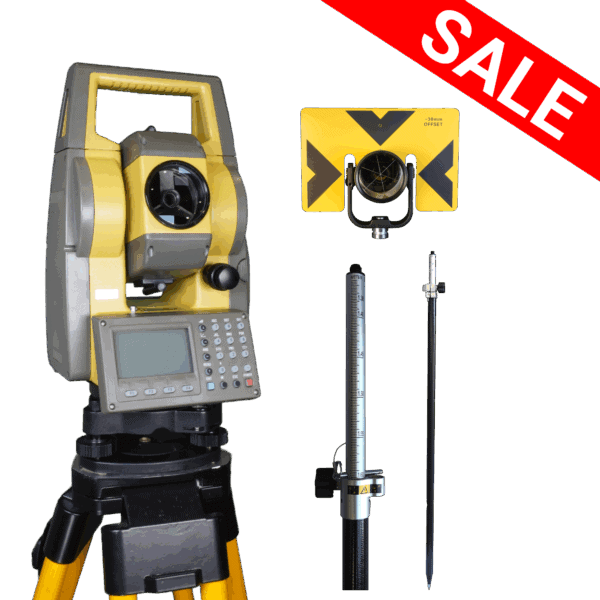

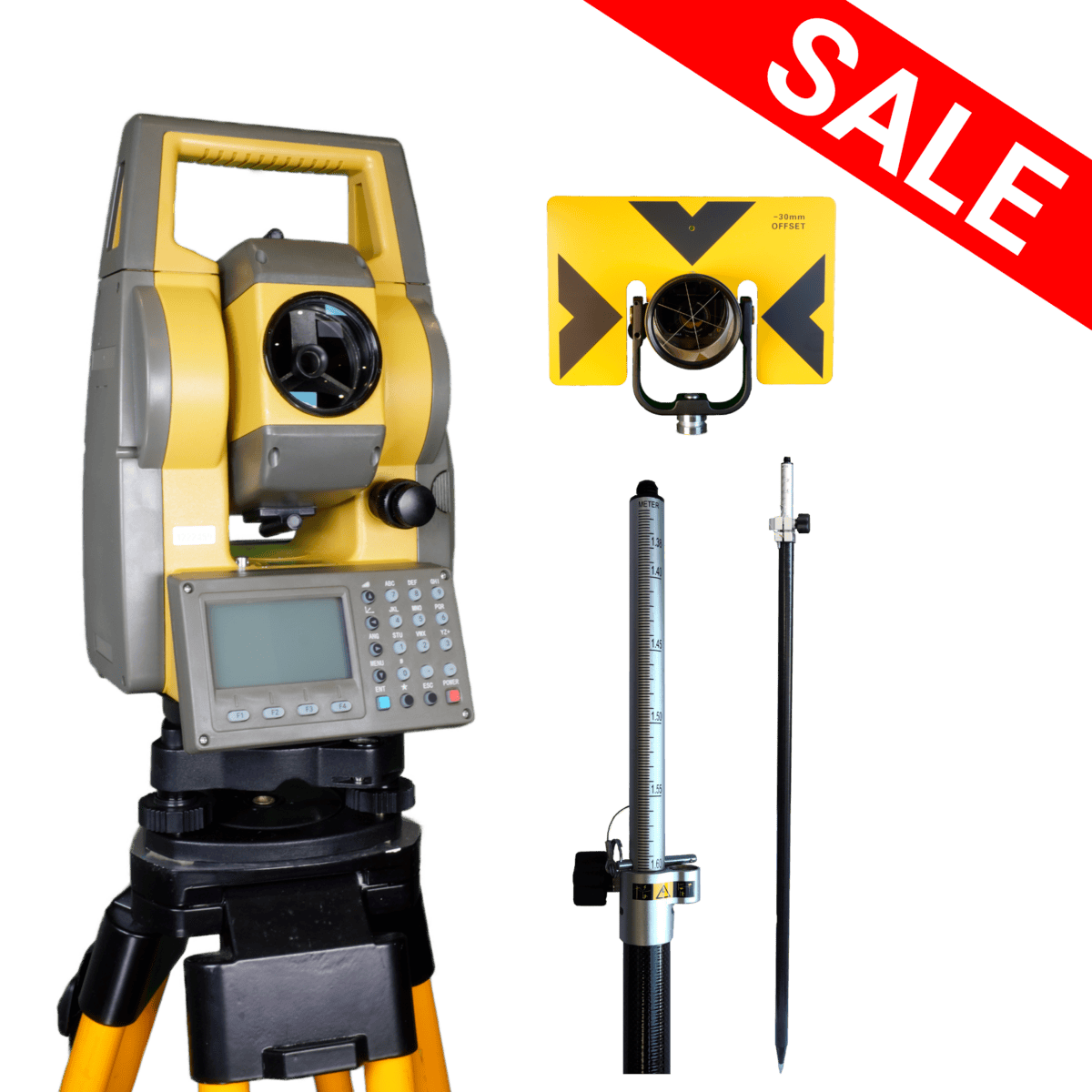

Package includes

  • GeoMeasure GM-52 Reflectorless 2″ Total Station
  • Li-Ion Battery
  • Charger
  • Manual
  • Prism Pole
  • Tilting Metal Prism

Description

GeoMeasure GM52 Total Station

Reflectorless Total Stations: Unlocking Precision and Efficiency

Embrace cutting-edge technology with Reflectorless Total Stations, a revolutionary solution designed to elevate your surveying and site layout experience. Let’s delve into the key features that set these instruments apart:

Fast and Accurate Electronic Distance Measurement (EDM):

Experience a new level of speed and precision with the state-of-the-art EDM system. Swift and accurate measurements are at your fingertips, ensuring efficiency in every aspect of your surveying tasks.

Optional Bluetooth® Communications:

Connectivity is key, and the Reflectorless Total Stations provide an optional Bluetooth® feature for seamless communication. This wireless capability enhances data transfer to your controller, eliminating the hassle of cables and streamlining your workflow.

GM52 Sqr

Advanced Angle Accuracy:

Precision is paramount in surveying, and these total stations boast advanced angle accuracy, guaranteeing that your measurements are as accurate as possible. Say goodbye to uncertainties and embrace the confidence that comes with top-notch angle precision.

Long Battery Life – 14 Hours:

Uninterrupted work is now a reality with a remarkable battery life of up to 14 hours. This extended power ensures that you can tackle extensive surveying tasks without the need for frequent recharging, adding a new level of convenience to your fieldwork.

Rugged, Waterproof Design with IP66 Rating:

Confront challenging environments with confidence. The total stations feature a rugged and waterproof design, validated with an IP66 rating. These instruments are built to withstand the elements, ensuring reliability in diverse and unpredictable conditions.

500 m Long-Range Reflectorless Measurement:

Expand your reach with an extraordinary 500 m long-range reflectorless measurement capability. This unparalleled feature provides flexibility in surveying large areas and allows you to capture accurate measurements even when a reflective surface is not readily available.

50,000 Point Internal Memory:

Capture and store extensive data effortlessly with an internal memory capable of holding up to 50,000 points. This generous storage capacity ensures that you have ample room for your survey data, facilitating a smooth and organized data management process.

Class-Leading EDM Unit:

The GM-50 Series is equipped with a class-leading EDM unit, allowing measurements of up to 4,000 m with an outstanding accuracy of 1.5 mm + 2 ppm to standard prisms. This superior EDM unit ensures precise and reliable measurements in various surveying scenarios.

Reflectless Mode Excellence:

In reflectorless mode, the GM-50 Series achieves measurements up to 500 m with an incredible accuracy of 2 mm + 2 ppm. This exceptional reflectorless capability provides the flexibility needed to tackle challenging surveying tasks with confidence.

Swift Measurements and Pinpoint Accuracy:

Experience rapid measurement capture, with a bright red laser dot featuring a 13 mm beam width at 30 m. This pinpoint accuracy ensures that even the smallest features are captured with ease, enhancing the overall efficiency of your surveying operations.

Bluetooth® Communication:

Integrated Bluetooth® capability with an internal antenna enables cable-free delivery of measurements to your data controller. This sleek design not only enhances connectivity but also contributes to a more streamlined and efficient workflow.

FAQs

The GeoMeasure GM52 is a manual total station designed for topographic surveys, construction layout, and as-built measurements. Its 2″ angular accuracy and reflectorless measurement capability make it useful for collecting precise site measurements without requiring a prism for every observation.

Reflectorless mode allows you to measure suitable surfaces without placing a prism at the target, which is useful for building facades, inaccessible points, and other locations where positioning a prism is difficult. The GM52 supports reflectorless measurements up to 500 m, while measurements with a prism can reach up to 4,000 m under suitable conditions.

The GM52 has a specified angular accuracy of 2″, with distance measurement accuracy of 1.5 mm + 2 ppm when using a prism. Reflectorless distance accuracy is specified at 2 mm + 2 ppm for measurements between 0.2 and 200 m; actual results depend on the target surface, measurement conditions, and instrument setup.

Yes. The GM52 is supported by MicroSurvey FieldGenius, and its embedded Bluetooth allows measurements to be transferred to a compatible external data collector without a cable. It is also designed to work with software options such as Topcon MAGNET, Carlson SurvCE, and SurvPC, so you can choose a workflow that fits your existing field equipment.

The standard package includes the 2″ reflectorless total station, a Li-ion battery, a charger, and a manual. Data collectors, field software, desktop software, and accessories such as a tripod or prism kit are selectable separately, so review your configuration to ensure it includes everything required for your field workflow.

Yes. The GM52 includes onboard software for measuring and storing survey points, allowing you to perform basic field collection without an external controller. For workflows that require graphical data collection, additional field software, or integration with office processing, you can use a compatible data collector and transfer data through the supported communication interfaces.

The GM52 is specified for up to 14 hours of operation on a full charge, supporting a typical day of surveying without frequent battery changes. Actual runtime depends on operating conditions and usage, so crews working extended shifts should plan charging around their schedule.

The GM52 has an IP66 dust and water protection rating and a specified operating temperature range of -20°C to +60°C. This supports use in many outdoor construction and surveying environments, but temperatures below -20°C fall outside the published operating range and should be considered when planning winter fieldwork.

No. The GM52 is a manual total station, meaning the operator aims the instrument at the target rather than relying on robotic tracking and remote prism control. Reflectorless measurement can reduce the need to position a prism for certain observations, but crews that need automated prism tracking or remote one-person operation should consider a robotic total station instead.
