$ 14,995.00 CAD
Description
See What Matters to Our Customers
The S321+ base and rover multi-GNSS (GPS, GLONASS, Beidou, SBAS), triple-frequency, RTK Kit from Hemisphere GNSS paired with their CW400 Data Collector brings high performance without the shocking sticker price. The S321+ is Hemisphere GNSS newest survey product that provides the quality one can expect from a North American manufacturer, without the shocking sticker price. Equipped with a Satel 1 Watt radio, and ready for a base radio, the S321+ gives you survey flexibility. With the latest constellations: GPS L1/L2c, GLONASS, and BeiDou, the S321+ is the ultimate tool for all your survey needs. If you would like to learn more, or receive a price quote, contact Bench-Mark today.
PRODUCT DETAILS
PACKAGE INCLUDES
The Hemsiphere S321+ GNSS Receiver
The Hemisphere S321+ has been Bench-Mark’s best-selling surveying receiver for the past three years. This is the best all around piece of equipment we have to offer here at Bench-Mark. This is the receiver that has all of the features of the highest end GNSS manufacturers at a price that is actually reasonable. There is no need to pilfer your coffers in order to pay for this unit. The S321+ is designed to quickly pay itself back, and is designed to last you for years to come. This is the network rover that will keep you ahead of the competition for years to come.
Multi Constellation GNSS and Triple Frequency
The S321+ is Hemisphere’s multi-GNSS, multi-frequency smart antenna. With the Hemisphere S321+ you receive corrections from; GPS, GLONASS, Galileo, BeiDou, and SBAS constellations at no extra charge. There is no need to activate the extra satellite constellations, they all come standard with the Hemisphere S321+. To add to this, the S321+ is also triple frequency. With a triple frequency receiver you have access to the most powerful GNSS signal yet L5. The L5 signal allows you to get performance otherwise impossible with traditional signals, in canopy positions. The L5 signal is powerful enough to get through tree canopies, allowing you to get shots that you would otherwise not have been able to get.
Surveyor Tough
The S321+ provides robust performance and high precision in a compact and rugged package. With a surveyor tough aluminum body, the S321+ is built to withstand whatever conditions you throw at it. The S321+ is built to survive a 2 M pole drop. This is the receiver that is built with accidents in mind, and is built to survive them. The IP67 environmental rating means that Hemisphere’s S231+ can withstand whatever conditions you face on site. This is the receiver that is built to last for years to come, and has the technology to compete that long as well.
Athena RTK Engine
The S321+ receiver is powered by Athena RTK technology. With Athena, S321+ provides state-of-the-art RTK performance when receiving corrections from a static base station or network RTK correction system. With multiple connectivity options, the S321+ allows for RTK corrections to be received over radio, cell modem, Wi-Fi, Bluetooth, or serial connection. S321+ delivers centimeter-level accuracy with virtually instantaneous initialization times and cutting-edge robustness in challenging environments.
The S321+ also boasts the impressive SureFix technology. With SureFix, you can always be assured that the solution you are seeing is the true solution. While determining a a SureFix solution, the Hemisphere S321 runs two solutions in parrellel on the board level. It is doing the equivalent of recording a fixed solution, and dumping the antenna to determine if the fixed position is consistent. You can be assured that a SureFix solution is correct 99.999 % of the time. This is the data you can rely on every time.
The S321+ receiver also enables users to work with Atlas. Atlas is Hemisphere’s industry-leading global correction service, which can be added as a subscription to the S321+. Atlas delivers world-wide centimeter-level correction data over L-band communication satellites. With Atlas, S321+ users are able to experience sub-decimeter positioning performance anywhere on earth, without the need to be near a GNSS or communication infrastructure.
Atlas L-band has the following benefits:
Powerful Communication
The S321+ features the ability to send and receive corrections over both cell and UHF modems. The powerful 1 W internal Satel radio is one of the best in the industry. With an optimal range of 10 km, you barely have the need for an external base radio. This is the receiver that has the radio power to get every survey done. In fact the S321+’s internal Satel radio is the best performing radio on Bench-Mark’s Range Test Baseline. Over 3.5 km with no line of site, the internal radio of the S321+ has no issues receiving corrections and calculating a fixed position. Once we step out of the truck, the receiver nearly instantly fixes. Every other receiver we have tested on this baseline, has had some range issues. This is the ultimate internal radio.
The internal 4G cell modem also allows you to send and receive corrections over cell. The S321+ is one of our favourite receivers to use on our own StormCaster internet RTK service. With StormCaster you can set up a permanent base at the office and as long as you have cell service, survey with unlimited range. With an internal cellular modem, you can run an an unlimited amount of rovers of the same base at multiple different job sites.
On top of the above mentioned communication options, the S321+ also broadcasts a Wifi signal over which setup and updates can be applied. With the Web-UI you can quickly set up static data, a base and a rover with little to no hassle. This is the receiver that has an option for any kind of way you want to work.
Key S321+ Features
Hemisphere CW400

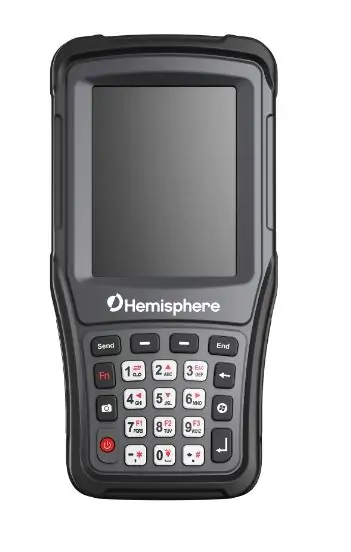

The IronView CW400 is Hemisphere GNSS’ next- generation professional grade GNSS data collector. The rugged handheld includes a high-sensitivity GNSS antenna and performs well in challenging environments, such as forests and urban areas.
The CW400 is compatible with high-capacity MicroSD cards, ensuring there is enough storage space for large data and faster background maps. Integrated Bluetooth and wireless LAN capabilities enable the CW400 to connect to networks and other devices freely.
The CW400 is the perfect fit for field work. The rugged hand-held is designed with a 3.7” industrial high contrast, sunlight-readable touchscreen display. The CW400 meets IP65 standard, making it both dust and water resistant. Two batteries provide up to 14 hours of use allowing GNSS data collection for a full working day without the need to recharge.

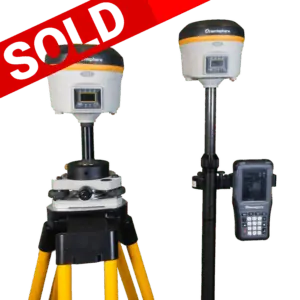

The Whole Package
Hemisphere’s S321+ and CW400 make for a powerful Base and Rover team. The S321+ allows you to get shots you never thought possible, and the CW400 is the data little data collector that could. The Hemisphere CW400 and S321+ are a combination of familiar technology with the new technology that will save you time and money in the field. This is one of the best dollar for dollar value units on the market today.
VISIT OUR LOCATION
#2 – 3175 68 St NW
Calgary, AB Canada, T3B 2J4
PHONE: 403-286-0333
EMAIL: [email protected]
BUSINESS HOURS:
Monday-Friday 8 a.m. – 5 p.m.
Saturday/Sunday: CLOSED
EMAIL US
John Lohnes, ALS – Vista Geomatics LTD. –
Brian and I took the system out on Sunday and we got radio at 10km. I was really surprised. Brian really likes the system. I will have no problem recommending this to people.
Osama Saadeldin – Bosys Technologies –
Just wanted to thank you for the great support we got from both of you. S321 is working out pretty good. We went out to the site and the equipment performed nicely. We had a SureFix and it stuck throughout the whole survey, and even after dumping it, it picked it up so quickly. It was a beautiful thing…
Andrew Tool – Don-More Surveys –
It works well and I am happy with it. Topcon can be “tricked” by having a good fix then going into a very high multipath area. Hemisphere S321 will recognize the bad solution much faster and dump the fix. Hemisphere is also better at not giving a “bad” fix in an area like woods where there is high blockage and multipath. Topcon will give the fix but as soon as you start to move it will dump the fix. Hemisphere will hold off on giving the fix until it is actually good. There are some physical features that are much better on the s321. Price-point of Hemisphere is also very attractive. Overall I am happy with purchase and would recommend to others.
Erin Miller -Terramatic Technologies Inc –
Just quick note to commend you on the s321 RTK system we just purchased. It works great under tree canopy, it held a SureFIX in thick tree cover and saved me a bunch of time hiking with my total station. The ties I’ve been getting have been extremely good when checking with my total station.
Blair Slater – Clunie Consulting Engineers Ltd. –
We love the new S321 GPS set that we recently received. I would like a quote on a second full GPS set just like the last one.
Benoit B. – Tree Ninja –
The S321 is a great unit.
Daniel E. Garber, RLS, Garber Surveying Service –
My guys seem quite happy. Thank you very much. This will be a lifesaver. Thanks again for your great service. We’ll keep you in mind for future needs.
David M. Brubacher O.L.S. – Strata Surveys –
I really like the S321. Battery life is great, positioning is very repeatable and I’m liking Carlson SurvCE more and more. I’m very happy with it. Performance in and around trees is excellent.
Kevin Fitzpatrick, P.Eng.- Silver Standard Resources Inc. –
The unit is working well, no problems at all. Thanks for getting it to us so promptly.
Peter Llewellyn- DGH Engineering Ltd. –
A great unit. Did even better near trees compared to other GNSS Equipment I’ve used in the past. I will definitely recommend it to others.
Lenny Guyett P.L.S. – GGI –
Everything seems to be going good and rock solid.
Todd Kuntz – City of Saskatoon –
The guys that are using the S321 are very happy with them. They fix quickly and seem to be very accurate.
James Kenny – Pasquini & Associates Consulting –
Just an update, well Rene it’s the best built GPS I’ve ever used, I’m completely impressed with the design, the radio is way better now, and since the S321 firmware update it’s repeatability and accuracy has been dead on!
Also this Mesa2 works awesome in every aspect daylight, it’s viewability is like nothing else on the market and in wet conditions the screen works flawlessly.
David Sawatzky –
I can tell you everything works flawlessly and we would be in a very tight spot if you hasn’t been able to ship the gear that you did in such short notice ! Thanks a ton!! I love the s321 and I like the 15 min aRTK drift option on the 321, it helps us in a lot of situations.
