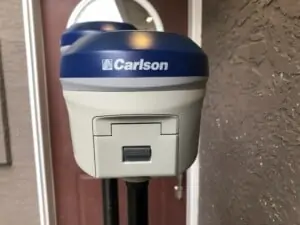

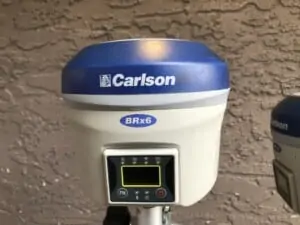

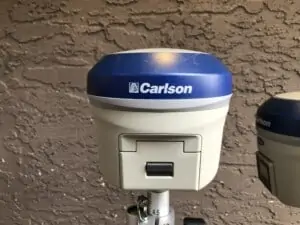

Carlson BRx6+ GNSS Receiver
Carlson BRx6+ is the receiver that has all of the features of the highest end GNSS manufacturers at a price that is actually reasonable. There is no need to pilfer your coffers in order to pay for this unit. The BRx6+ is designed to quickly pay itself back, and is designed to last you for years to come. This is the network rover that will keep you ahead of the competition for years to come.
Multi Constellation GNSS and Triple Frequency
The Carlson BRx6+ is Carlson’s multi-GNSS, multi-frequency smart antenna. With the Carlson BRx6+ you receive corrections from; GPS, GLONASS, Galileo, BeiDou, and SBAS constellations at no extra charge. There is no need to activate the extra satellite constellations, they all come standard with the Carlson BRx6+. To add to this, the Carlson BRx6+ is also triple frequency. With a triple frequency receiver you have access to the most powerful GNSS signal yet L5. The L5 signal allows you to get performance otherwise impossible with traditional signals, in canopy positions. The L5 signal is powerful enough to get through tree canopies, allowing you to get shots that you would otherwise not have been able to get.

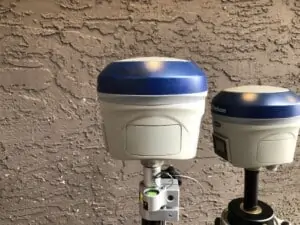

The Carlson BRx6+ provides robust performance and high precision in a compact and rugged package. With a surveyor tough aluminum body, the Carlson BRx6+ is built to withstand whatever conditions you throw at it. Carlson BRx6+ is built to survive a 2 M pole drop. This is the receiver that is built with accidents in mind, and is built to survive them. The IP67 environmental rating means that Carlson BRx6+ can withstand whatever conditions you face on site. This is the receiver that is built to last for years to come, and has the technology to compete that long as well.
Athena RTK Engine
The Carlson BRx6+ receiver is powered by Athena RTK technology. With Athena, BRx6+ provides state-of-the-art RTK performance when receiving corrections from a static base station or network RTK correction system. With multiple connectivity options, the BRx6+ allows for RTK corrections to be received over radio, cell modem, Wi-Fi, Bluetooth, or serial connection. BRx6+ delivers centimeter-level accuracy with virtually instantaneous initialization times and cutting-edge robustness in challenging environments.
The BRx6+ receiver also enables users to work with Atlas. Atlas is Hemisphere’s industry-leading global correction service, which can be added as a subscription to the BRx6+. Atlas delivers world-wide centimeter-level correction data over L-band communication satellites. With Atlas, BRx6+ users are able to experience sub-decimeter positioning performance anywhere on earth, without the need to be near a GNSS or communication infrastructure.
Atlas L-band has the following benefits:
- Positioning accuracy – Competitive positioning accuracies down to 2 cm
RMS in certain applications.
- Positioning sustainability – Advanced position quality maintenance in the
absence of correction signals, using Hemisphere’s patented technology.
The BRx6+ features the ability to send and receive corrections over both cell and UHF modems. The powerful 1 W internal Satel radio is one of the best in the industry. With an optimal range of 10 km, you barely have the need for an external base radio. This is the receiver that has the radio power to get every survey done. In fact the BRx6+’s internal Satel radio is the best performing radio on Bench-Mark’s Range Test Baseline. Over 3.5 km with no line of site, the internal radio of the BRx6+ has no issues receiving corrections and calculating a fixed position. Once we step out of the truck, the receiver nearly instantly fixes. Every other receiver we have tested on this baseline, has had some range issues. This is the ultimate internal radio.
The internal 4G cell modem also allows you to send and receive corrections over cell. The BRx6+ is one of our favourite receivers to use on our own StormCaster internet RTK service. With Stormcaster you can set up a permanent base at the office and as long as you have cell service, survey with unlimited range. With an internal cellular modem, you can run an an unlimited amount of rovers of the same base at multiple different job sites.
On top of the above mentioned communication options, the BRx6+ also broadcasts a Wifi signal over which setup and updates can be applied. With the Web-UI you can quickly set up static data, a base and a rover with little to no hassle. This is the receiver that has an option for any kind of way you want to work.
Key BRx6+ Features

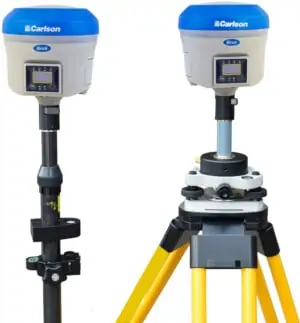

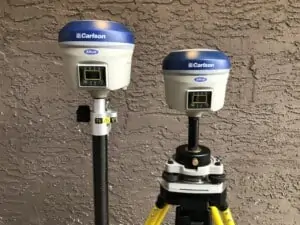

- Multi-Frequency, Multi-GNSS Base Station/Rover
- GPS, GLONASS, BeiDou, Galileo, and QZSS
- Athena™ RTK, Atlas® L-Band, and SBAS-Capable
- Hot Swappable Batteries with 12 Hours of Combined Life
- Wifi, UHF, Cellular and Bluetooth Communication
- 8 GB of Internal Memory for Data Logging, Downloading, and Uploading
- 572 Channels
- 1, 2, 4, 5, or 10 Hz Update Rate (20 Hz Optional)
- Internal Radio (410 – 470 MHz)
